Teledyne LeCroy announces the availability of PCI Express 5.0 EDSFF interposers

Teledyne LeCroy, the worldwide leader in protocol test solutions, recently announced availability of PCI Express 5.0 EDSFF interposers for analysis of Enterprise & Datacenter Small Form Factor (EDSFF) E1.S, E1.L, E3.x type solid-state drives (SSDs) and devices.

These EDSFF interposers work in combination with the Summit family of PCI Express 5.0 protocol analyzers to test product designs that utilizes the PCIe 5.0, NVM Express (NVMe) and Compute Express Link (CXL) protocol technologies with data rates up to 32 GT/s and link widths up to x16.

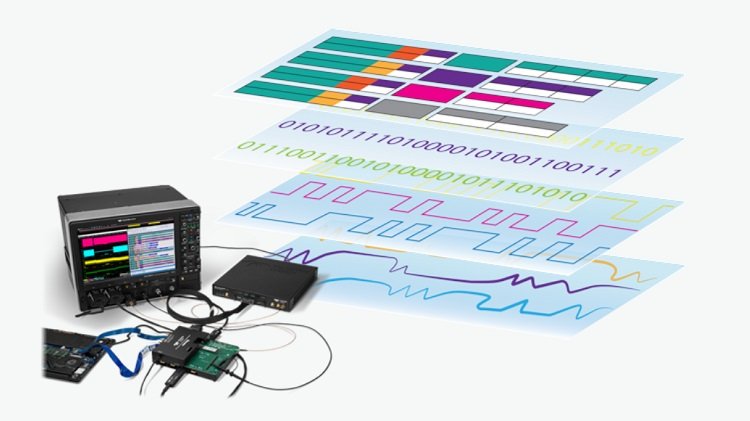

The PCIe 5.0 EDSFF interposers include Teledyne LeCroy’s CrossSync PHY technology, enabling users to debug enhanced power management and link training equalization, through correlated and time aligned physical and protocol layer views. No other solution gives this type of insight into link behavior.

EDSFF devices designed for high performance systems make up an important and growing segment of the enterprise and datacenter storage devices market. Based on the PCIe 5.0, NVMe and CXL specifications, the EDSFF interface can support speeds of up to 32GT/s. Now design and test engineers can test, identify issues, and optimize EDSFF (E1.S, E1.L, E3.x) type memory systems and solid-state drive performance using Teledyne LeCroy PCIe 5.0 EDSFF interposers.

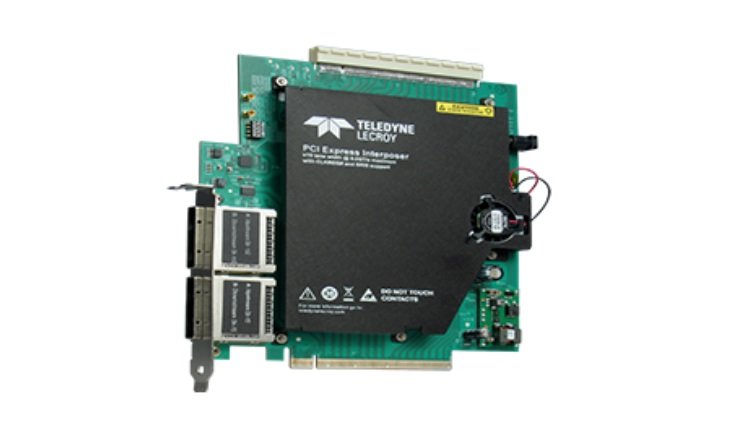

Three new PCIe 5.0 EDSFF Interposer models, which can be optionally upgraded with CrossSync PHY support, have been added to the Teledyne LeCroy PCI Express test solutions product line.

  • PE243UIA-X – PCIe 5.0 4-lanes EDSFF E1.S Interposer
  • PE241UIA-X – PCIe 5.0 8-lanes EDSFF E1.L Interposer
  • PE240UIA-X – PCIe 5.0 16-lanes EDSFF E3.x Interposer

These interposers can connect with any of the Teledyne LeCroy PCIe 5.0 Summit protocol analyzers to capture and analyze PCIe bus traffic between a host backplane and SSD and/or CXL memory system.

The new CrossSync PHY software option is supported with LeCroy LabMaster and WaveMaster oscilloscopes.
